Uniweld’s RHG Series Gaugeless Regulators feature:
• Machined Brass Body
• Polished Chrome Bonnet
• Color coded spring loaded cylinder gauge indicator
• 2″ tri layered reinforced neoprene diaphragm
• Delivery Pressure calibrations inscribed on regulator bonnet
• Porous bronze inlet filter
• Fine mesh filter screen between inlet and seat
• Pressure relief device for low pressure gauge protection only
**Different Pressure Scales & Inlet Connections Available Upon Request**
| Part # | CGA Inlet | Outlet Connection | Delivery PSIG | Replacement Spring Loaded Contents Gauges |
|---|---|---|---|---|

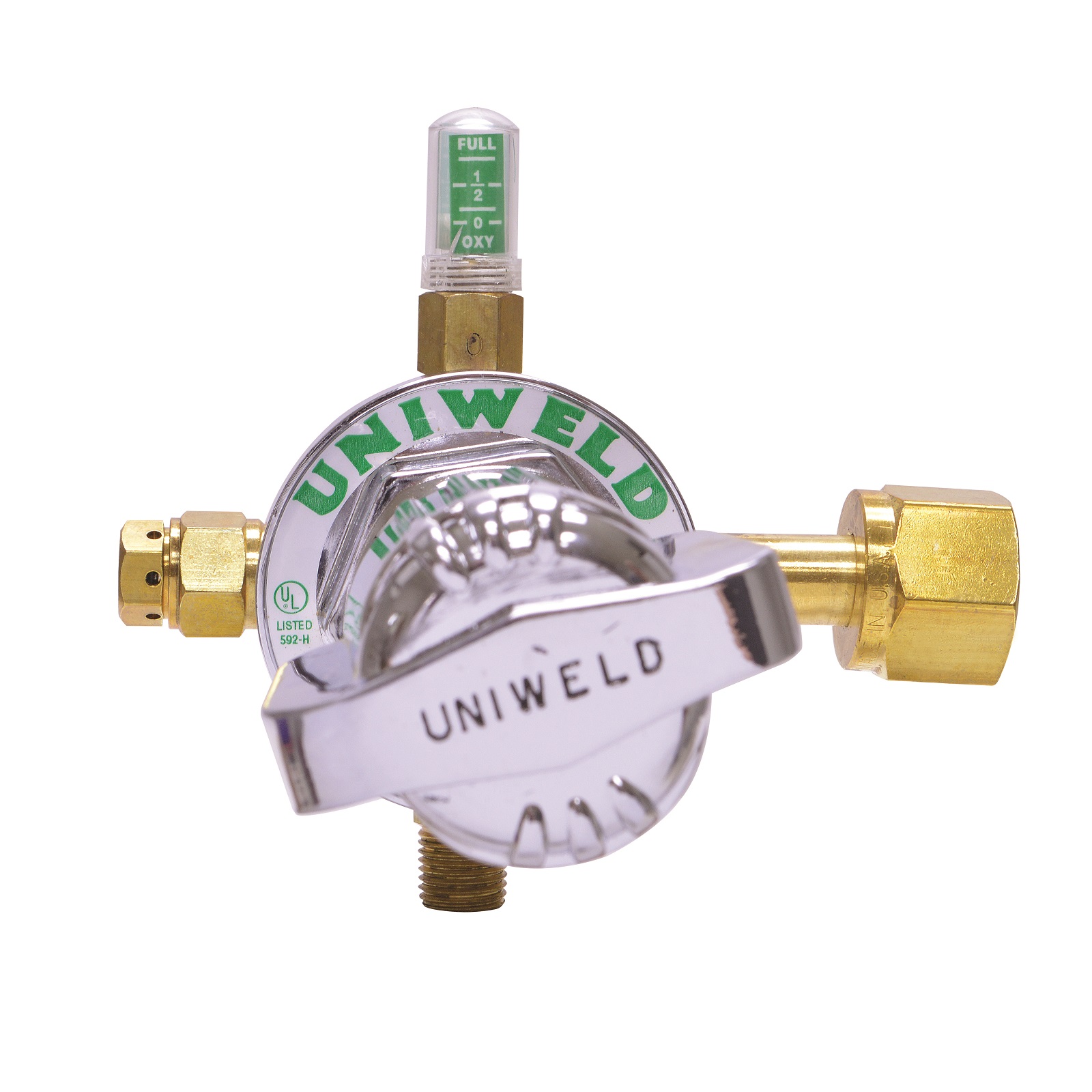

| RHG8010 | Oxygen 540 | “B” (RH) 9/16″-18 (M) | 5-100 | G60 |

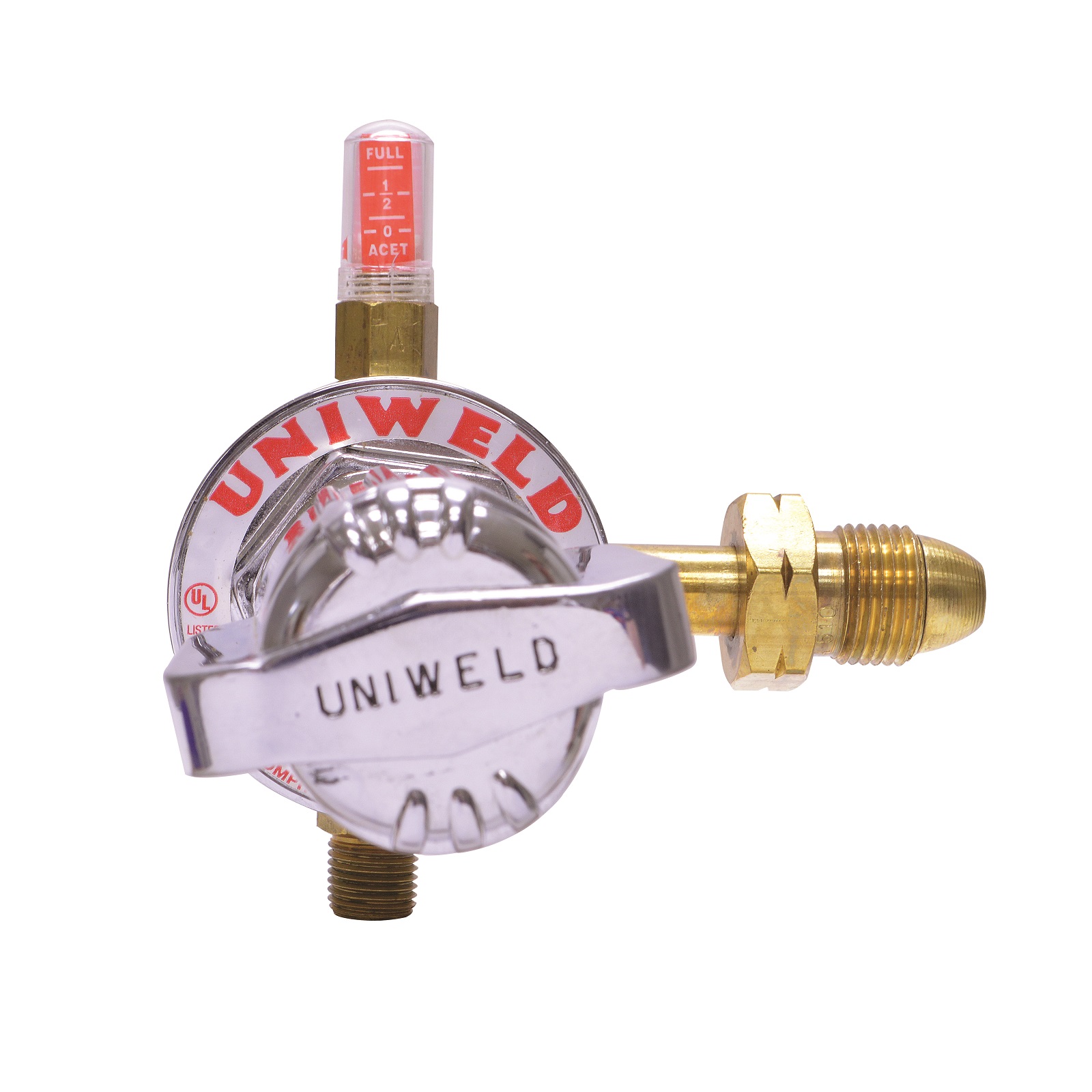

| RHG8011 | Acetylene 510 | “B” (LH) 9/16″18 (M) | 2-15 | G61 |
| RHG8011-1 | Acetylene 300 | “B” (LH) 9/16″-18 (M) | 2-15 | G61 |
| RHG8011-CND | Acetylene 410 | “B” (LH) 9/16″-18 (M) | 2-15 | G61 |

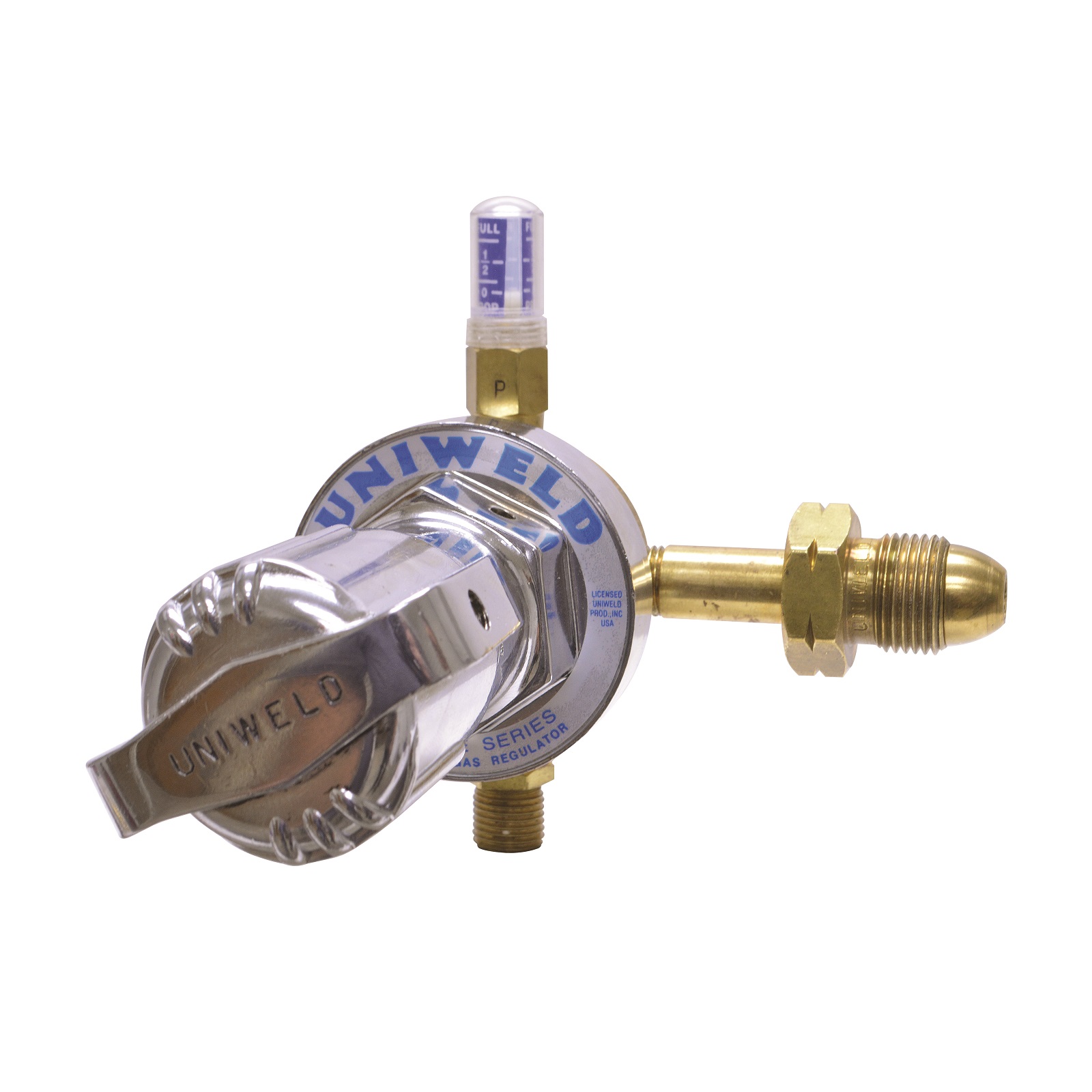

| RHG8012 | LP & All Fuel Gases 510 | “B” (LH) 9/16″-18 (M) | 2-40 | G59 |
