Specialty Regulators

Uniwelds Specialty Regulators, a compact proven design for soft drink dispensing systems (Not Beer) and for many types of pressurizing applications. Features include an adjustable pressure screw with locking nut and a self-reseating relief valve (not designed to protect downstream systems).

**Different Pressure Scales & Inlet Connections Available Upon Request**

Category: Tags: , , , , , , ,

Product Information

Part # CGA Inlet Outlet Connection Delivery PSIG 1-1/2″ Replacement Gauges
R1344 Carbon Dioxide 320 1/4″ SAE Flare (M) 2-12 G20; 15 PSI
R1346 Carbon Dioxide 320 1/4″ SAE Flare (M) 5-50 G83; 60 PSI
R1349 Carbon Dioxide 320 1/4″ SAE Flare (M) 5-175 G84; 300 PSI

G82; 4000 PSI
R1358 Carbon Dioxide 320 1/4″SAE Flare (M) 2-12 G20; 15 PSI

G82; 4000 PSI
R1360 Carbon Dioxide 320 1/4″SAE Flare (M) 5-50 G93; 60 PSI
R1362 Carbon Dioxide 320 1/4″SAE Flare (M) 5-120 G78; 200 PSI

G82; 4000 PSI

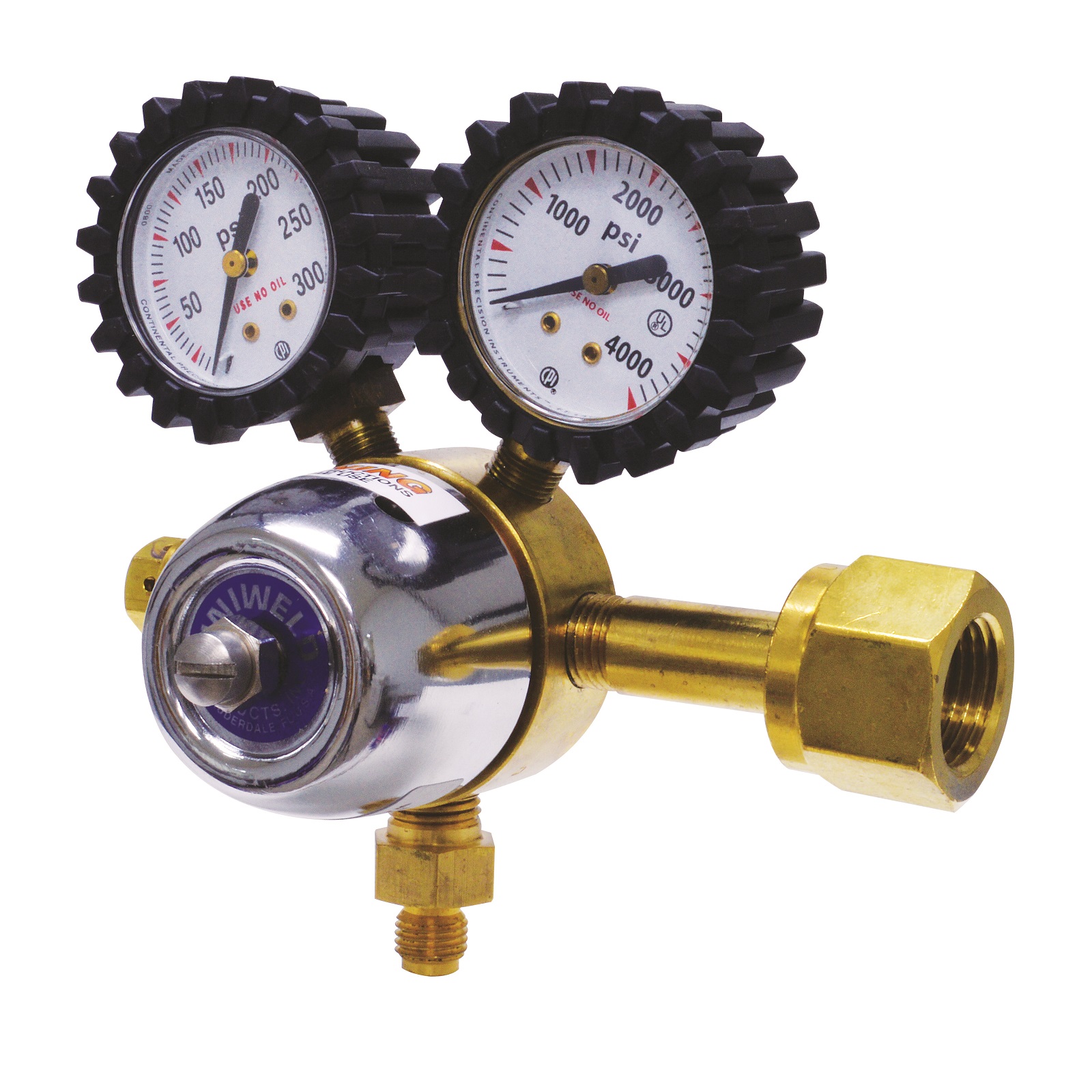

R1363 Carbon Dioxide 320 1/4″SAE Flare (M) 5-175 G84; 300 PSI

G82; 4000 PSI
R1546 Nitrogen 580 1/4″SAE Flare (M) 5-50 G83; 60 PSI

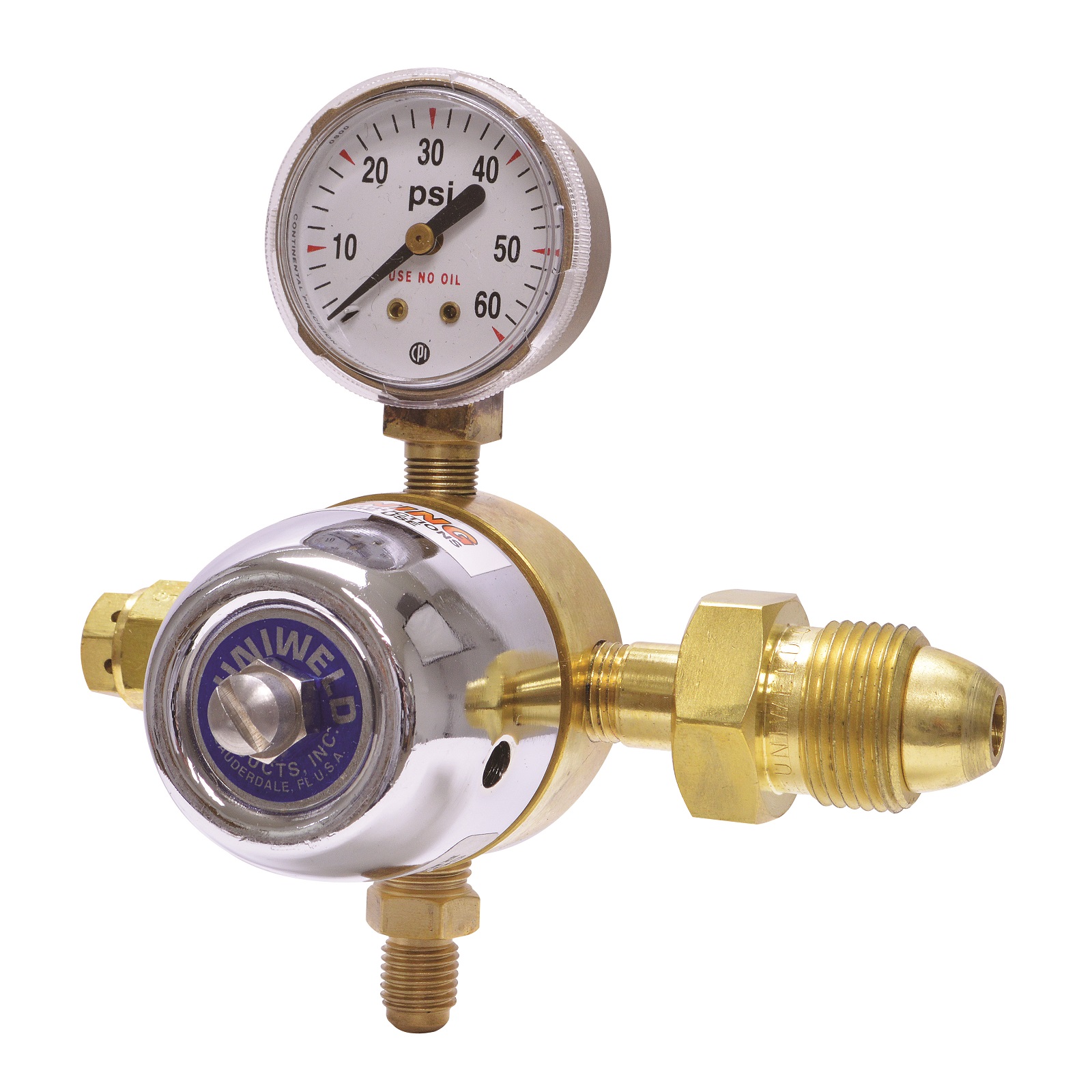

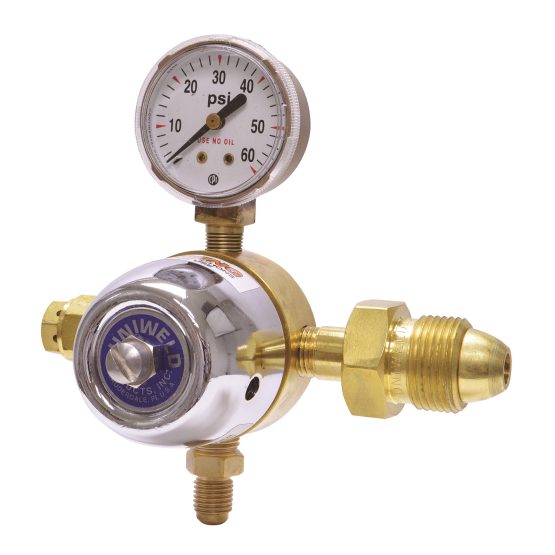

R1549 Nitrogen 580 1/4″SAE Flare (M) 5-175 G84; 300 PSI
R1558 Nitrogen 580 1/4″SAE Flare (M) 2-12 G20; 15 PSI

G82; 4000 PSI
R1560 Nitrogen 580 1/4″SAE Flare (M) 5-50 G83; 60 PSI

G82; 4000 PSI
R1562 Nitrogen 580 1/4″SAE Flare (M) 5-120 G78; 200 PSI

G82; 4000 PSI
R1536 Nitrogen 580 1/4″SAE Flare (M) 5-175 G84; 300 PSI

G82; 4000 PSI
