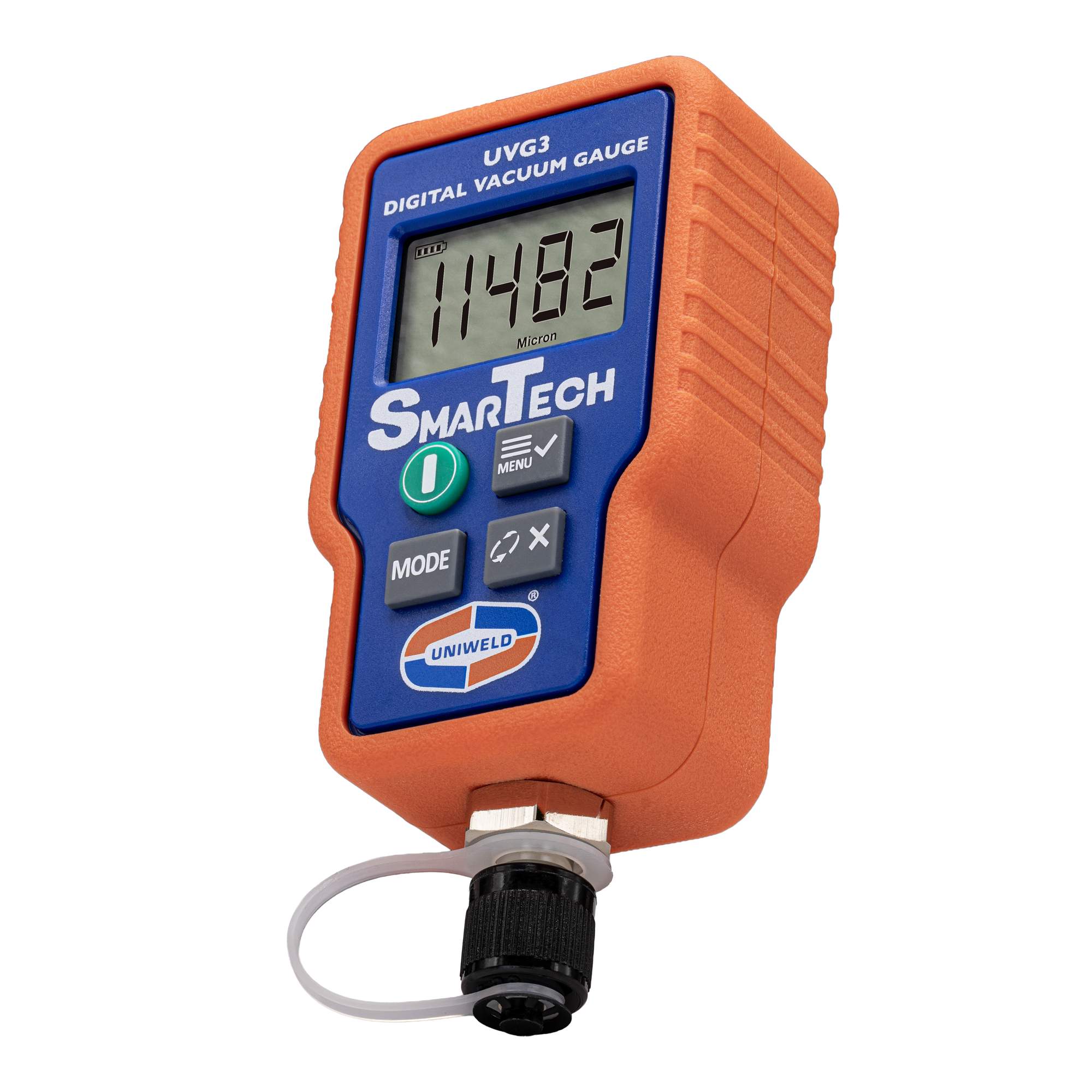

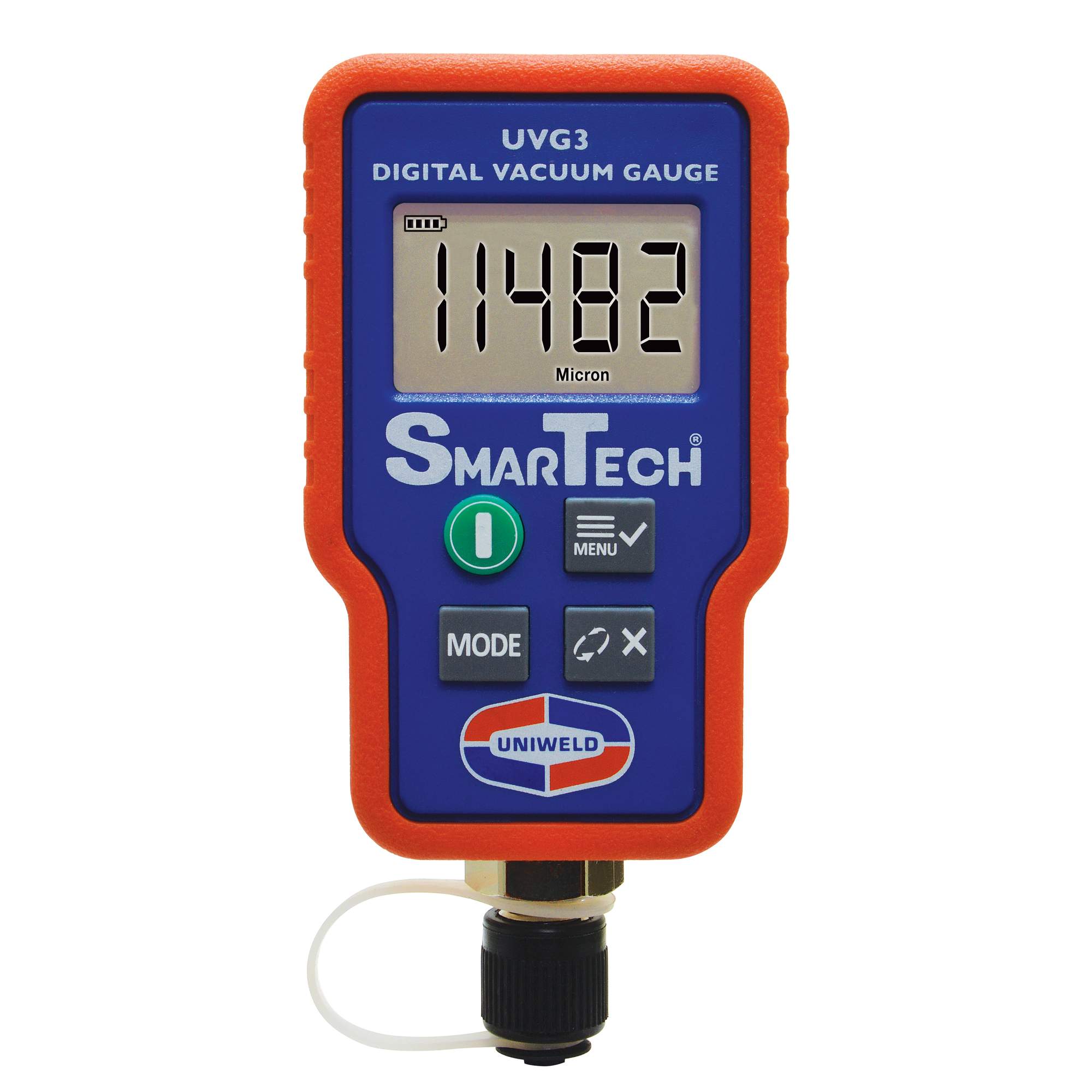

Uniweld UVG3 SmarTech® Digital Vacuum Gauge provides unsurpassed vacuum accuracy and quickly measures vacuum in Measures in Microns, Pascals, Millibar, mmHg, mTorr with a resolution down to 0.1 micron. Oil Filter Disk Prevents Sensor Contamination. Keeps your sensor clean and accurate! Temperature Compensated Self-Calibration. Large, High-Visibility Backlit LCD Display. Requires (1) CR123A Battery (included).
Specifications:
* Range: 0 to 15,000 Microns
* Maximum Overpressure: 500 psi
* Backlit Display
* Sleep Mode
* Oil Contamination Detection
* Leak Test Mode
* Ambient Temperature Measurement
* Temperature Compensated Self-Calibration
* UVGA Adapter 1/4″ Fx1/4″ FF
| Part No | Range | Resolution | Accuracy | Operating Temperature | Battery Life |
|---|---|---|---|---|---|
| UVG3 | 0 to 15,000 microns, 1999.8355 pa, 19.9984 mbar, 15 mmHg. |
0.1 micron < 1,000 micron, 1.0 micron > 1,000 micron. |
0-999 +/-5% or +/-5 Microns 1,000-10,000 +/-10% 10,000-15,000 +/-10% |
10 °F to 122°F -12 °C to 50 °C |
Up to 120 Hours |
