V-Style Welding Handles

V-Style Welding Handles are designed with:
– Four O-ring seals and tube within a tube design
– Ribbed brass handle
– Stainless steel ballpoint valves with Teflon® packing
– Forged brass rear torch and valve bodies

Categories: , , Tags: , ,

Product Information

Part # Length Weight Hose Connection Flashback Arrestors Welding Capacity Compatible Cutting Attachments
WH360 9″ 18 oz “B” 9/16″-18 Thread “B” Flashback Arrestors 3″ 780A (90°), 3-780A (90°), 780 (75°), 3-780 (75°), 780B (180°)
WH360L 11″ 24 oz “B” 9/16″-18 Thread “B” Flashback Arrestors 3″ 780A (90°), 3-780A (90°), 780 (75°), 3-780 (75°), 780B (180°)
72L9 8-3/4″ 18 oz “B” 9/16″-18 Thread “B” Flashback Arrestors 3″ 780A (90°), 3-780A (90°), 780 (75°), 3-780 (75°), 780B (180°)
72L11 11″ 23 oz “B” 9/16″-18 Thread “B” Flashback Arrestors 3″ 780A (90°), 3-780A (90°), 780 (75°), 3-780 (75°), 780B (180°)
WH350 7-1/2″ 13.5 oz “B” 9/16″-18 Thread “B” Flashback Arrestors 1-1/4″ CA350 (90°), CA350B (180°)
WH350FB 9-1/2″ 18.2 oz “B” 9/16″-18 Thread “B” Flashback Arrestors Included 1-1/4″ CA350 (90°), CA350B (180°)

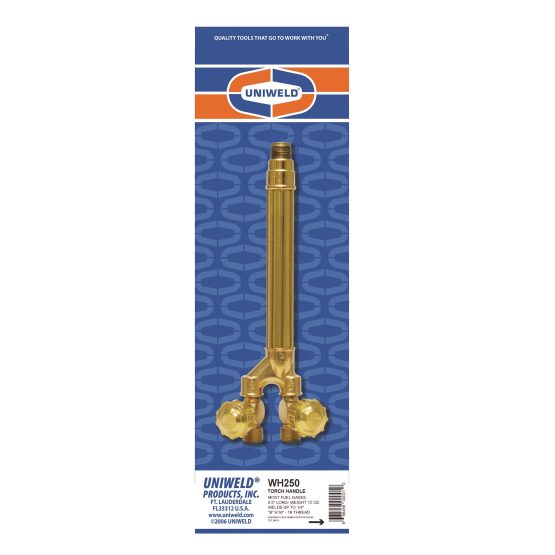

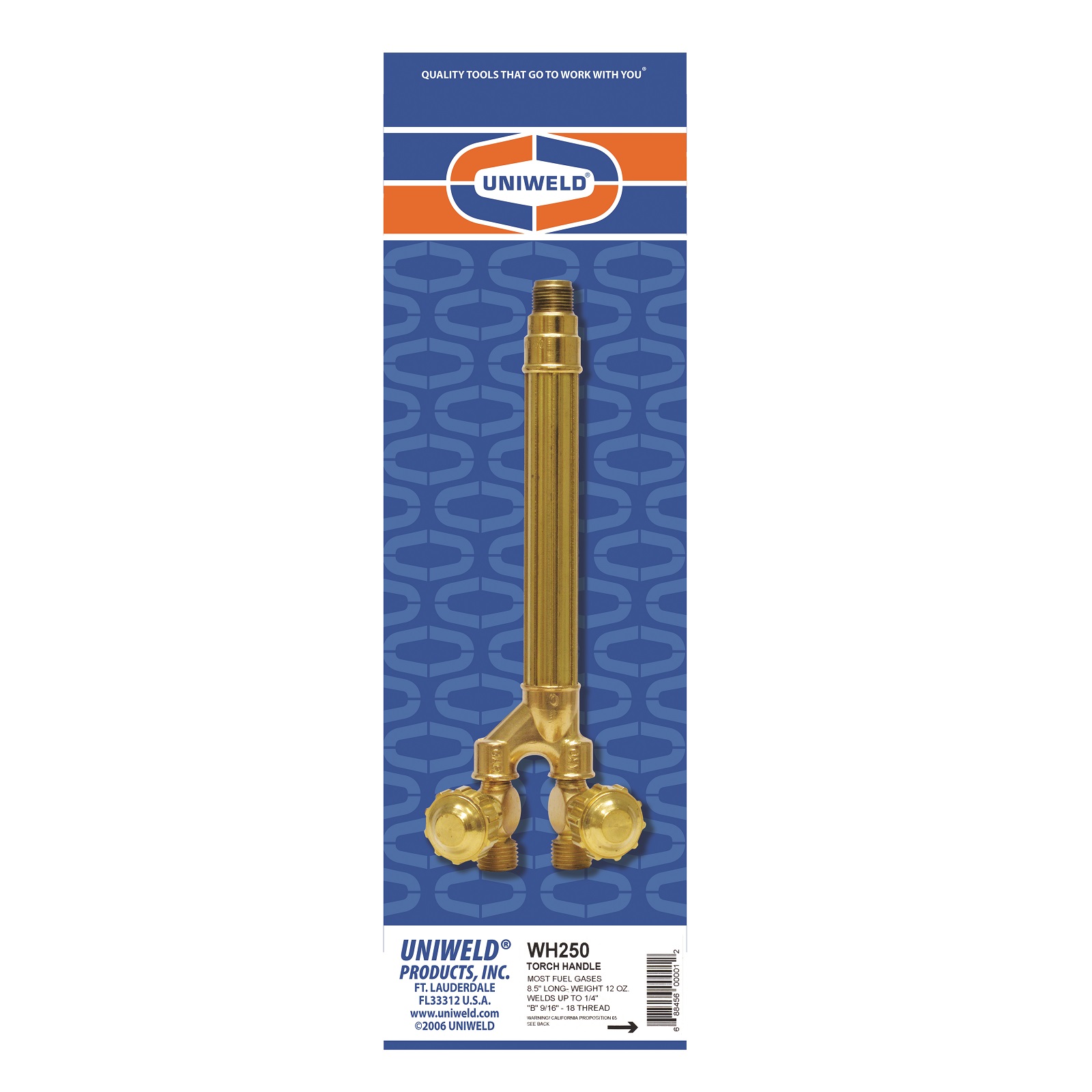

WH250 7-1/2″ 13.1 oz “B” 9/16″-18 Thread “B” Flashback Arrestors 1/4″ CA250 (90°), CA550 (90°), CA100 (90°)
WH250FB 9-1/2″ 18 oz “B” 9/16″-18 Thread “B” Flashback Arrestors Included 1/4″ CA250 (90°), CA550 (90°), CA100 (90°)
WH550 7-1/2″ 12.7 oz “A” 3/8″-24 Thread “A” Flashback Arrestors 1/4″ CA250 (90°), CA550 (90°), CA100 (90°)
71 6″ 6.4 oz “A” 3/8″-24 Thread “A” Flashback Arrestors 1/4″ CA250 (90°), CA550 (90°), CA100 (90°)

Add (FB) to Part # to include U.L. Listed Flashback Arrestors on the Welding Handle.

Additional information

F11 Adaptor:

Can be used to convert the 71, WH250 and WH550 handles [ Screw Connect ] to an air/fuel handle.
F12 Adaptor:

Can be used to convert the WH350 handle [ Screw Connect ] to an air/fuel handle.
F13 Adaptor:

Can be used to convert the 71, WH250 and WH550 handles [ Quick Connect ] to an air/fuel handle.
