Uniweld’s Micro 6000™ Tips heat up to 5600°F, providing pinpoint brazing accuracy.
| Part# | Acetylene Consumption SCFH | Oxygen Pressure PSIG | Acetylene/Fuel Pressure PSIG | Overall Length | Welding Metal Thickness | Brazing Copper Tubing |
|---|---|---|---|---|---|---|
| MTW-1 | 2-3 | 5 | 5 | 3″ | 3/64″ | 1/2″ |

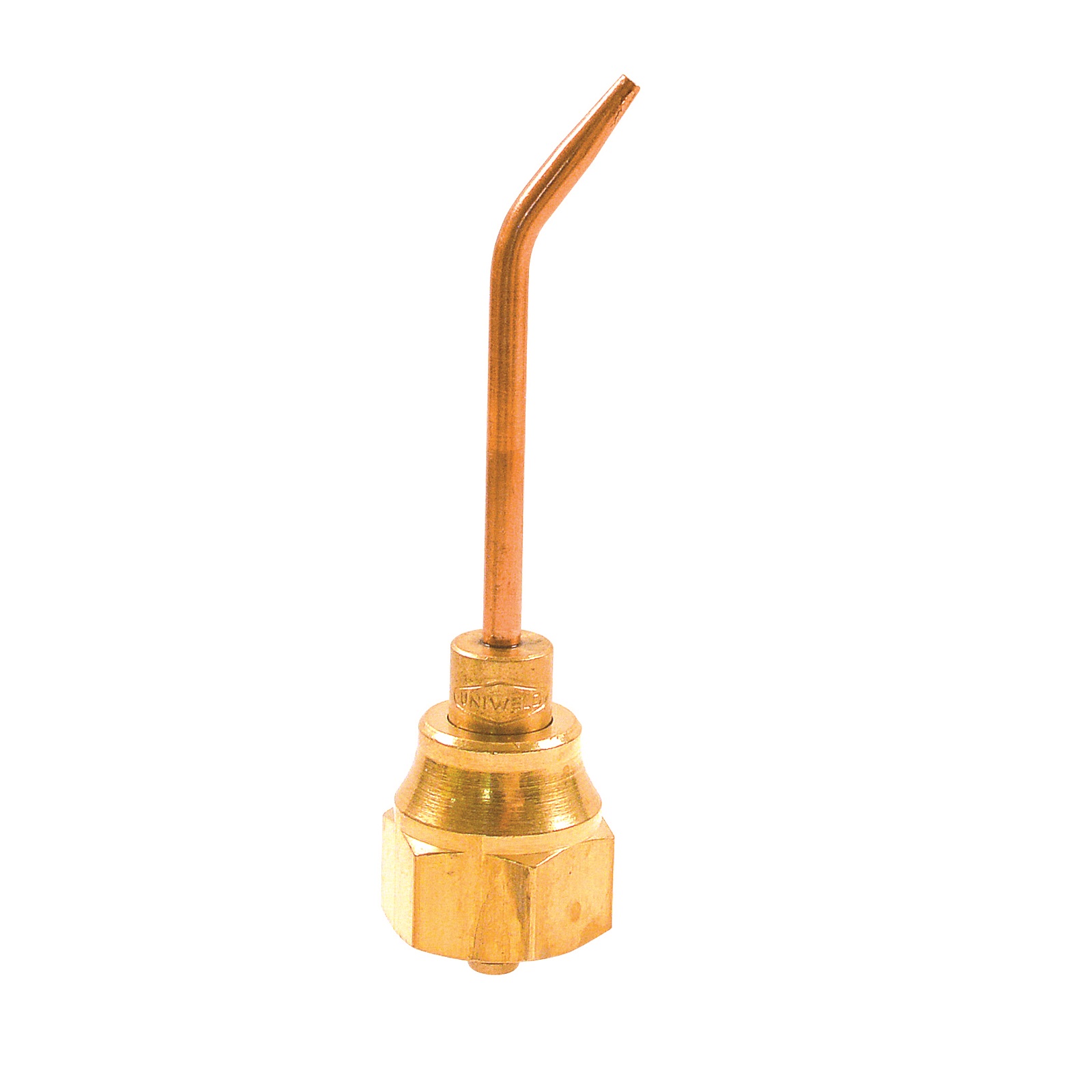

| MTW-2 | 2-4 | 5 | 5 | 3″ | 5/64″ | 1″ |
| MTT | 4-6 | 5 | 5 | 4″ | N/A | 1″ |
| MTR | 4-8 | 5 | 5 | 4″ | N/A | 1-1/2″ |
| Micro 6000™ Tips: | • Fit 71 and WH550 welding handles |
|---|---|

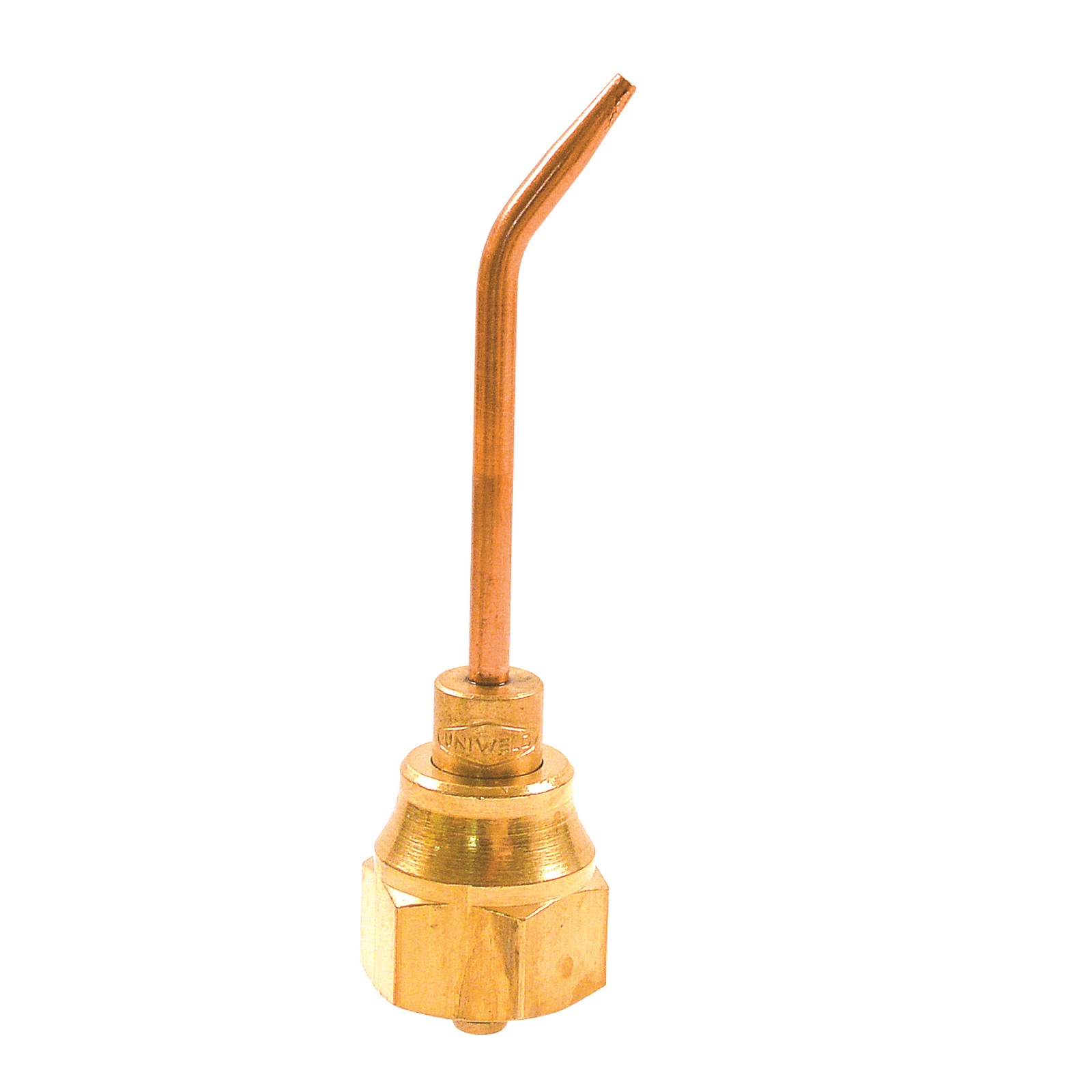

| MTW-1: | • Pinpoint concentrated heat in confined spaces |

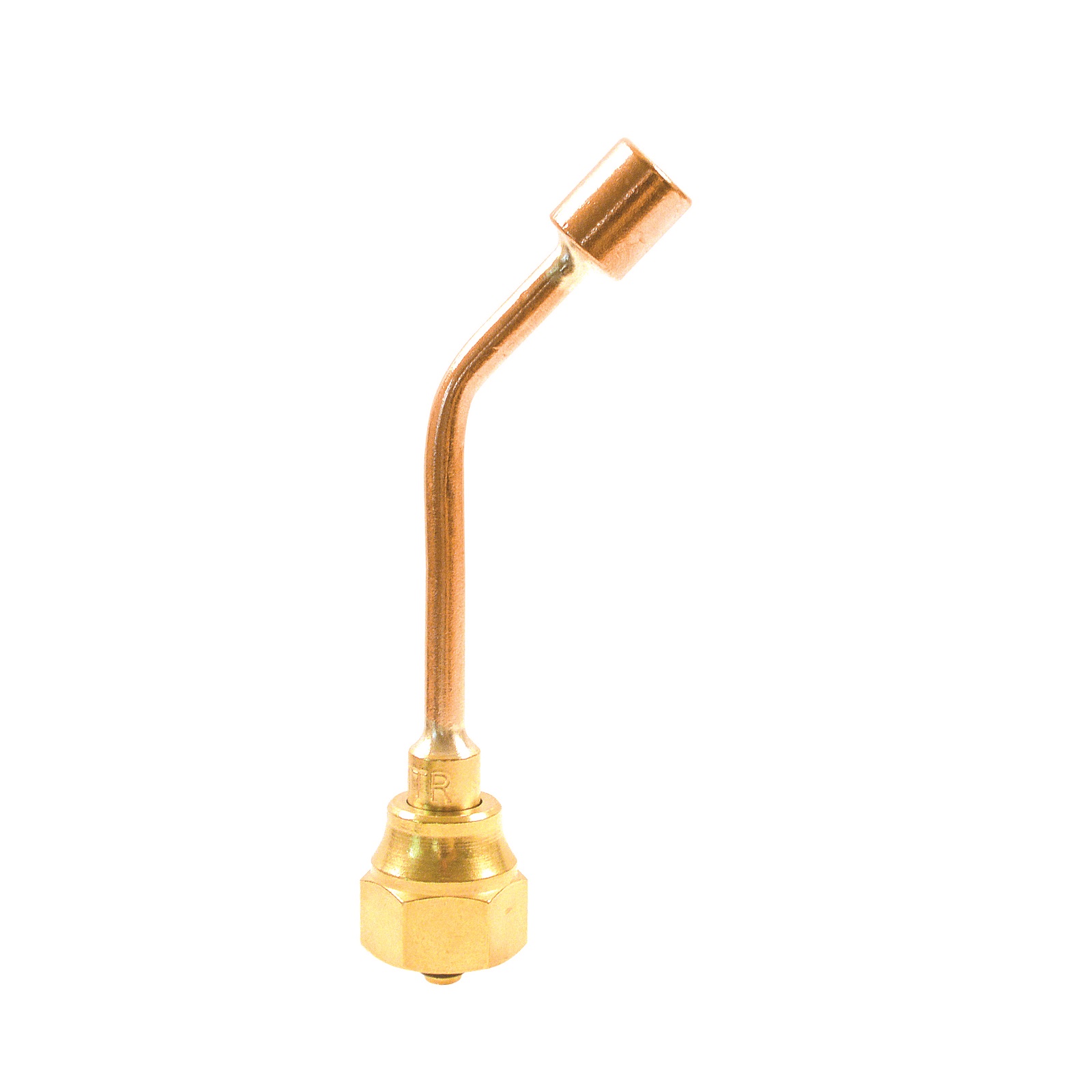

| MTR: | • Stable concentrated flame even in in windy conditions |

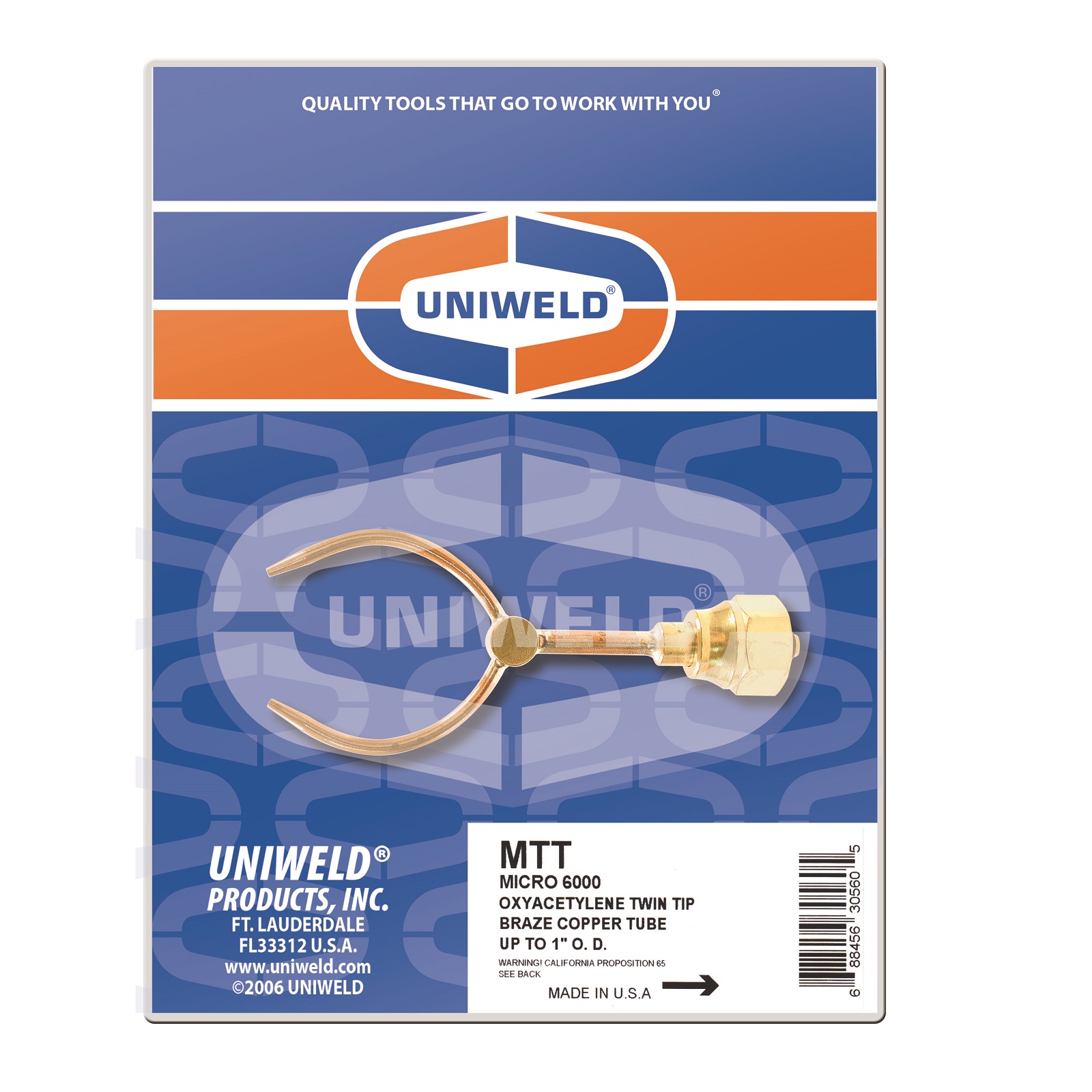

| MTT: | • Adjustable tip ends for maximum control |
